Product parameters
Product model: 101-2A
Temperature control range: room temperature+5-250 ° C
Temperature control accuracy: ± 1 ° C
Temperature resolution: 1 ℃
Environmental temperature: 5-40 ° C
Relative humidity: ≤ 85%
Power supply voltage: 220V
Input power: 2500W
Volume: 136L
Inner liner size DxWxH: 450x550x550
External dimensions DxWxH: 860x560x690
Note: All the above products are equipped with observation windows. A: Ordinary inner galvanized plate
- Product Details
- Product manual

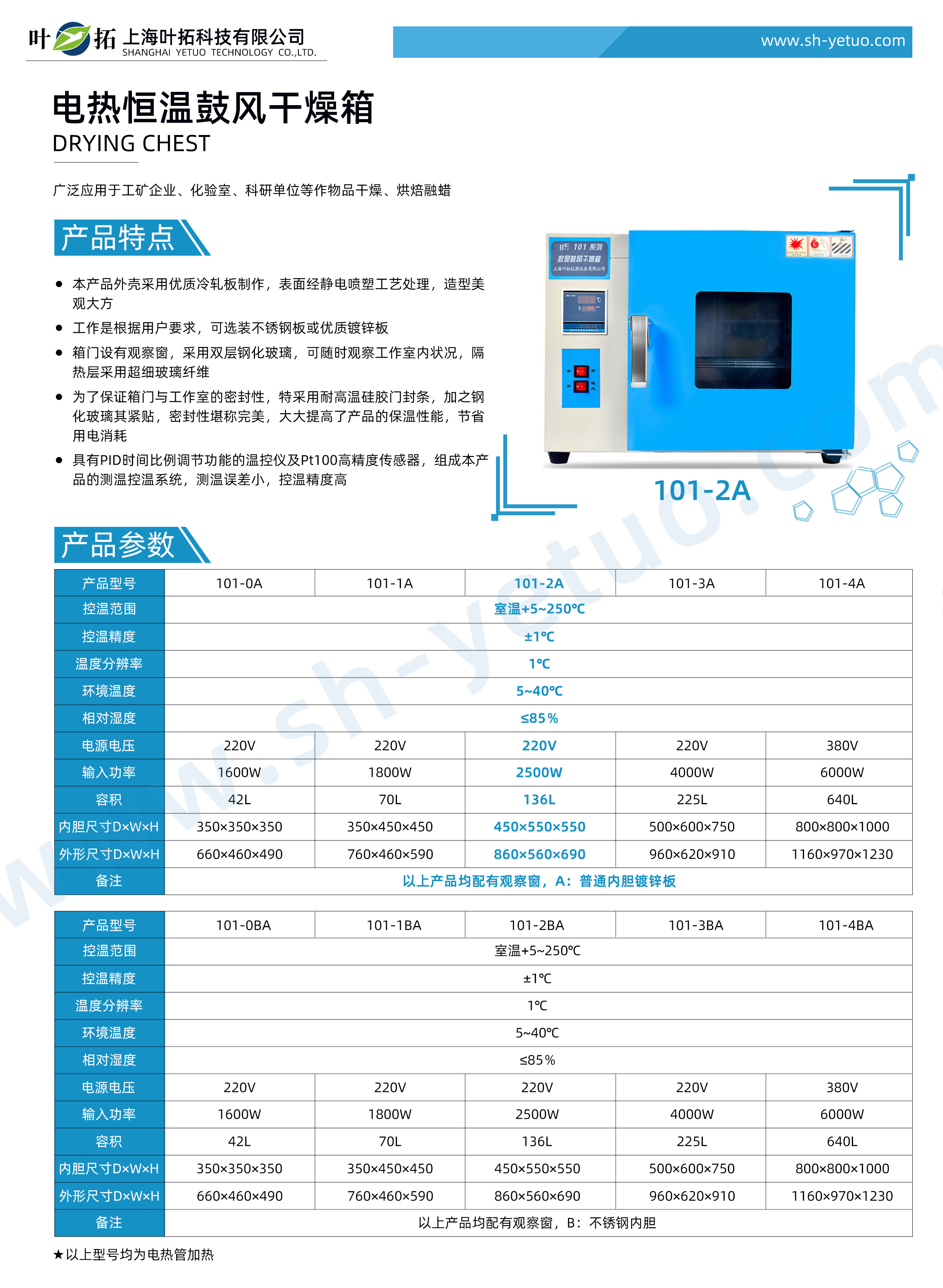

Ye Tuo 101-2A electric blast drying oven
Product Name and Model: 101-2A
Product Overview:
Widely used in industrial and mining enterprises, laboratories, research institutions, and other industries for drying, baking, and wax melting.
Product characteristics of Ye Tuo 101-2A electric blast drying oven
The outer shell of this product is made of high-quality cold-rolled sheet, and the surface is treated with electrostatic spraying technology, resulting in a beautiful and elegant appearance.
The job is based on user requirements and can be equipped with stainless steel plates or high-quality galvanized plates.
The box door is equipped with observation windows, made of double-layer tempered glass, which can observe the condition inside the studio at any time. The insulation layer is made of ultra-fine glass fiber.
In order to ensure the sealing between the box door and the studio, high-temperature resistant silicone door seals are specially used, combined with tempered glass that is tightly attached, resulting in perfect sealing performance, greatly improving the insulation performance of the product and saving electricity consumption.
The temperature controller with PID time proportional adjustment function and Pt100 high-precision sensor form the temperature measurement and control system of this product, with small temperature measurement error and high temperature control accuracy.
